Supervision

This module allows Supervisors to view the status of Inbound Campaigns, Outbound Campaigns (Manual, Dialer and Preview) and Agents.

_images/output_supervision_options.png

Figure 1: Choices for supervision

Agent Status View

En la sección de agentes se observan todos los agentes logueados en el sistema y el estado en el que se encuentran (READY, OnCall, Paused, Dialing, Offline, Unavailable) .

Important

  • Agents must be assigned to at least one campaign in order to appear in this supervision view.
  • Cuando un agente pasa al estado “Offline” desaparece del listado de agentes.
  • Cuando un agente pasa al estado “Unavailable” quiere decir que el agente perdió conexión o cerró el browser sin desloguearse.

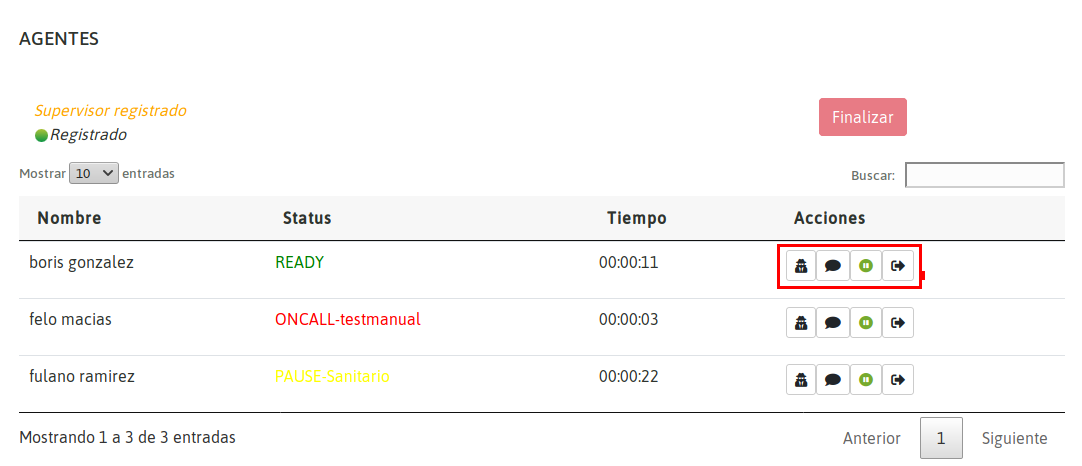

_images/output_supervision_agentes.png

Figure2: View of realtime supervision

Supervisors are able to take some actions on each agent. That is the reason why action buttons appear next to the agent status. All possible functions will be explained further below (from left to right).

  • Spy: the supervisor listens the active call between agent and customer. Clicking on Finish button, allows the supervisor to finish the listening action.
  • Spy and Whisper: the supervisor is able to listen and speak during an agent conversation without customer perception. Clicking on Finish button, allows supervisor to finish listening and whispering actions.
  • Pause Agent: assuming the agent is out of the box and forgot to pause the session, the supervisor is able to force a pause action from supervisor view. This is useful as to avoid receiving calls while agent is absent but ready. Supervisor can also un-pause session by pressing the same button again.
  • Logging Out Agent: assuming the agent closes browser session incorrectly (without using Log-Out button), agent session still remains active. Supervisor has the ability to log agent out with this button. It is important to perform this action as to avoid having inconsistencies in session time reports (and more important to instruct agent to close session from log-out button!).

Note

The supervisor has a small webphone. In order to perform all the possible actions stated above, a message of Supervisor Registered needs to be present on supervisor console.

Inbound Campaigns View

This view exposes a summary of all productive Inbound Campaigns, in terms of the accumulated results of the operation day: received calls, answered calls, abandoned calls, abandoned during welcome audio calls, average waiting time,expired calls, on queue calls, average abandon time, and Engaged CallsDispositions (*) per campaign.

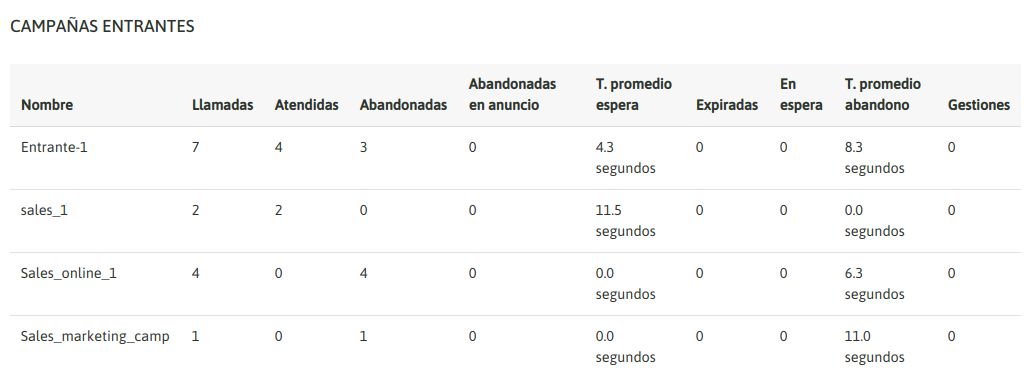

_images/output_supervision_camp_entrantes.png

Figure3: view of realtime inbound campaigns

Outbound Campaigns View

As in the previous point, Outbound Campaigns also count on with a real time summary of the results for each campaign: dialed calls, answered calls, not answered calls, and their respective Engaged Call Dispositions (*).

_images/output_supervision_camp_salientes.png

Figure4: view of realtime outbound campaigns

Note

It is expected for this view to display results on a day-by-day basis, from 00:00 to 23:59. After that time range, statistics are reset.

Note

Engaged Call means a call that the agent closes with an engaged call disposition, the one in charged of triggering a campaign form.
